Take-Off Collars
Take-Off Collars
- Category:Collars
- Material:Galvanized Steel
- Gauge:28ga / 26ga
- Specification Sheet: Download PDF
- Collar Options: Download PDF
- Purchase: Find Distributors
Product Description
Body mechanically fastened together to ensure a rigid assembly.
Galvanized steel provides excellent corrosion resistance and longevity.
Flange fabricated to ensure solid connection.
Clamp band and pipe crimp facilitate quick and secure field installation.

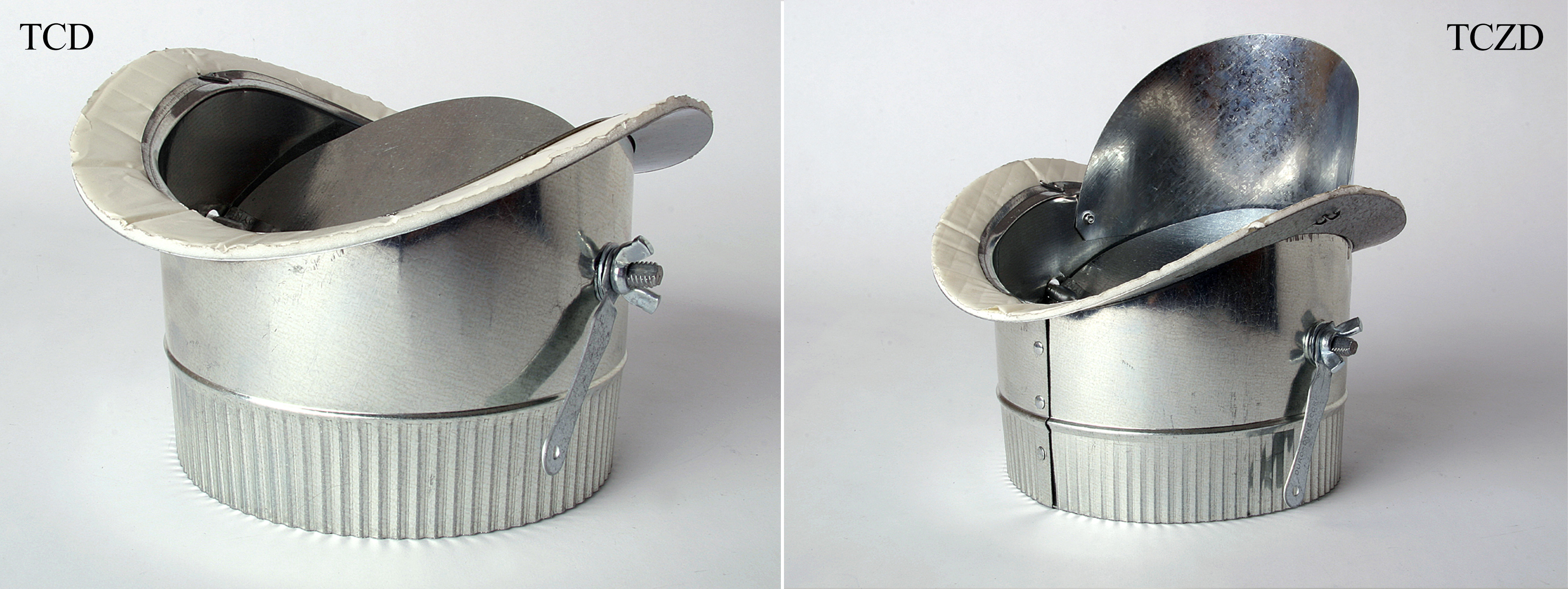

Take-Off Collar Models
TC: Take-off collar plain.
TCZ: Take-off collar with scoop only.
TCD: Take-off collar with damper only.
TCZD: Take-off collar with scoop and damper.
TCD-SO: TCD with standard 2" stand-off.
TCD-SOE: TCD with Miami Tech's 2" stand-off.
TCZD-SO: TCZD with standard 2" stand-off.
TCZD-SOE: TCZD with Miami Tech's 2" stand off.
Standard Sizes
| Size | TC | TCZ | TCD | TCZD | For Pipe Size | Quantity |
|---|---|---|---|---|---|---|
| 4" | TC4 | TCZ4 | TCD4 | TCZD4 | 6" - 8" | 1 |
| 5" | TC5 | TCZ5 | TCD5 | TCZD5 | 8" - 10" | 1 |
| 6" | TC6 | TCZ6 | TCD6 | TCZD6 | 8" - 10" | 1 |
| 7" | TC7 | TCZ7 | TCD7 | TCZD7 | 10" - 12" | 1 |
| 8" | TC8 | TCZ8 | TCD8 | TCZD8 | 10" - 12" | 1 |
| 9" | TC9 | TCZ9 | TCD9 | TCZD9 | 12" - 14" | 1 |
| 10" | TC10 | TCZ10 | TCD10 | TCZD10 | 12" - 14" | 1 |
| 12" | TC12 | TCZ12 | TCD12 | TCZD12 | 14" - 16" | 1 |
| 14" | TC14 | TCZ14 | TCD14 | TCZD14 | 16" - 18" | 1 |
| 16" | TC16 | TCZ16 | TCD16 | TCZD16 | 18" - 20" | 1 |
| 18" | TC18 | TCZ18 | TCD18 | TCZD18 | 20" - 22" | 1 |
| 20" | TC20 | TCZ20 | TCD20 | TCZD20 | 22" - 24" | 1 |
