Rectangular Transition
Rectangular Transition
- Category:Metal Fittings
- Material:Galvanized Steel
- Gauge:28ga
- Specification Sheet: Download PDF
- Collar Options: Download PDF
- Purchase: Find Distributors
Product Description
Galvanized steel provides excellent corrosion resistance and longevity.
Continuous welded seam prevents air leakage.
1" flange with gasketed face helps to make a secure connection.
Flange is pre-drilled to allow for easier installation.
Damper has reinforced axis and standoff allows for locking the regulator.
Rectangular Transition Models
RT: Plain rectangular transition.

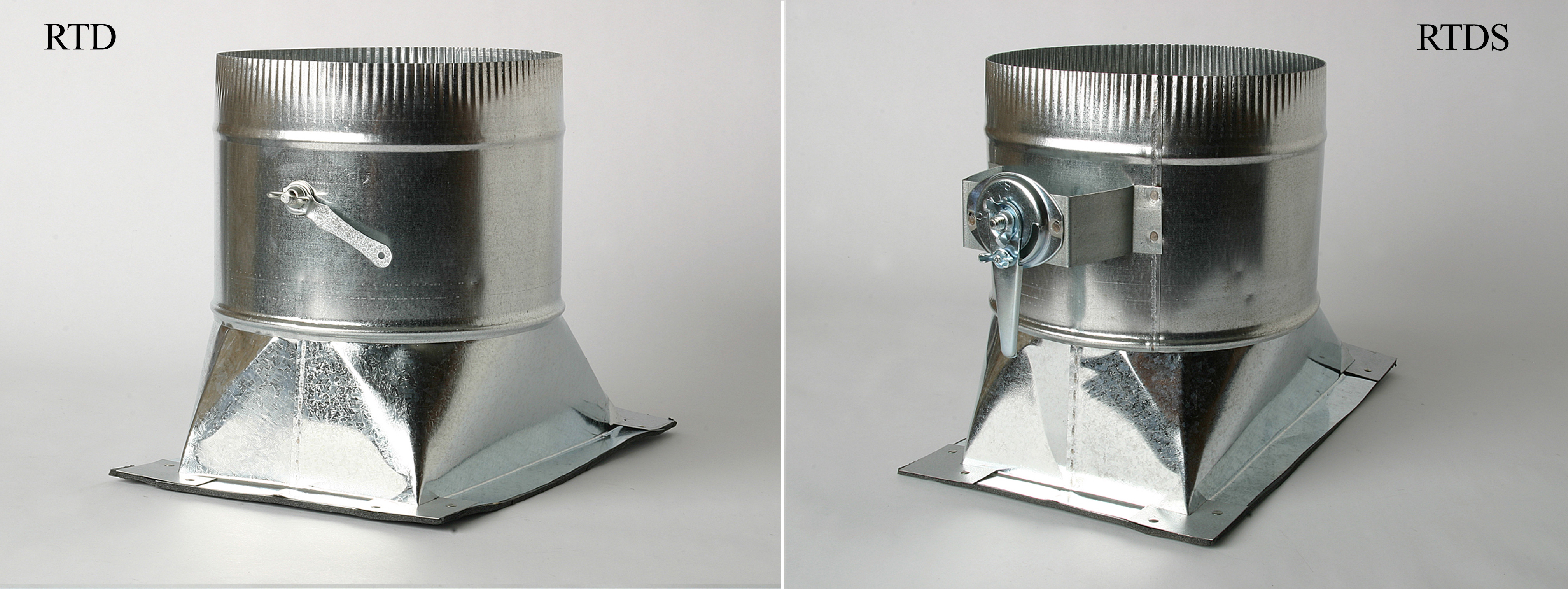

RTD: Rectangular transition with damper.
RTDS: Rectangular transition with damper and 2" stand-off.

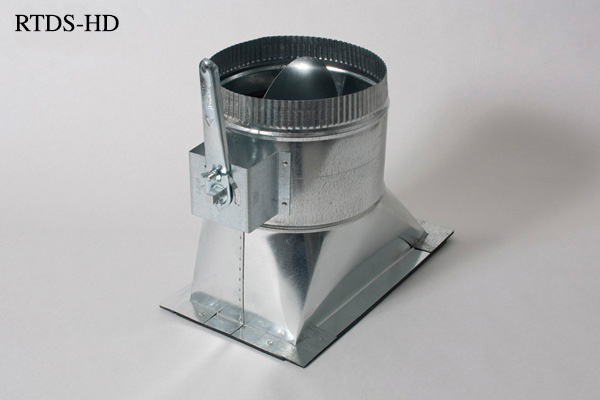

RTDS-HD: Heavy-duty rectangular transition with damper and 2" stand-off.
RTDS-HDG: Heavy-duty rectangular transition with damper, 2" stand-off, and blade total-seal gasket.
Standard Sizes
| RT | RTD | RTDS | Size | Box Qty. |
|---|---|---|---|---|
| RT4 | RTD4 | RTDS4 | 4" | 1 |
| RT5 | RTD5 | RTDS5 | 5" | 1 |
| RT6 | RTD6 | RTDS6 | 6" | 1 |
| RT7 | RTD7 | RTDS7 | 7" | 1 |
| RT8 | RTD8 | RTDS8 | 8" | 1 |
| RT10 | RTD10 | RTDS10 | 10" | 1 |
| RT12 | RTD12 | RTDS12 | 12" | 1 |
| RT14 | RTD14 | RTDS14 | 14" | 1 |
| RT16 | RTD16 | RTDS16 | 16" | 1 |
| RT18 | RTD18 | RTDS18 | 18" | 1 |
