R-8 Register Box
R-8 Register Box
- Category:Register Boxes
- Material:Galvanized Steel
- Gauge:30ga
- R8BF Specification Sheet: Download PDF
- Purchase: Find Distributors
Product Description
1" perimeter flange provided for easy installation.
Design includes 1/2" drywall lip and rounded corners for added safety.
Opening 1/4" oversized to accommodate register/grille.
Dual Bead design for added strength.
Black diffuser board coated with EPA registered anti-microbial protective acrylic agent along air stream side.
R-8 Register Box Models
R8BF: R-8 flanged register box.

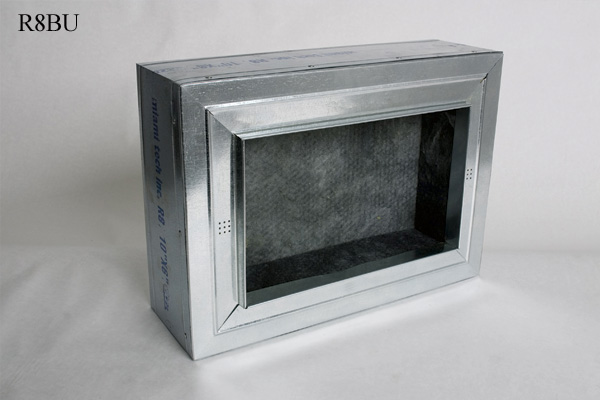

R8BU: R-8 unflanged register box.
R8BFG: R-8 flanged register box with gasket.
Standard Sizes
| R8BF | R8BU | Size | Quantity |
|---|---|---|---|
| R8BF0604 | R8BU0604 | 6" x 4" | 32 |
| R8BF0606 | R8BU0606 | 6" x 6" | 28 |
| R8BF0804 | R8BU0804 | 8" x 4" | 24 |
| R8BF0806 | R8BU0806 | 8" x 6" | 24 |
| R8BF0808 | R8BU0808 | 8" x 8" | 20 |
| R8BF1006 | R8BU1006 | 10" x 6" | 20 |
| R8BF1008 | R8BU1008 | 10" x 8" | 16 |
| R8BF1010 | R8BU1010 | 10" x 10" | 14 |
| R8BF1206 | R8BU1206 | 12" x 6" | 14 |
| R8BF1208 | R8BU1208 | 12" x 8" | 14 |
| R8BF1212 | R8BU1212 | 12" x 12" | 8 |
| R8BF1406 | R8BU1406 | 14" x 6" | 14 |
| R8BF1408 | R8BU1408 | 14" x 8" | 14 |
| R8BF1414 | R8BU1414 | 14" x 14" | 8 |
| R8BF1606 | R8BU1606 | 16" x 6" | 10 |
| R8BF1608 | R8BU1608 | 16" x 8" | 8 |
| R8BF1616 | R8BU1616 | 16" x 16" | 8 |
| R8BF1818 | R8BU1818 | 18" x 18" | 6 |
| R8BF2020 | R8BU2020 | 20" x 20" | 6 |
| R8BF2424 | R8BU2424 | 24" x 24" | 5 |
