Model AST
Condensing Unit Stand
For Non-HVHZ

Model AST
Condensing Unit Stand For Non-HVHZ

Product Description

    Engineered specifically for non-use in high velocity hurricane zones (HVHZ - Miami-Dade County & Broward County).
    Spread center to center: 27" closed - 42" opened.
    Available with optional cross-mounting angle.
    Available with optional lead boots.
    Available with optional electrical box mounting bracket (EMB).
    Available with optional vibration pad to isolate vibration from condensing unit.
    Engineer’s raised-seal drawings available.

18.5" Stand Assembly

Part No. Description
AST185Q-K3 18.5” Legs (2 Frames), 1/4 Plate, 3’ I-Beam, For Non-HVHZ
AST185Q-K6 18.5” Legs (2 Frames), 1/4 Plate, 6’ I-Beam, For Non-HVHZ
AST185Q-K9 18.5” Legs (3 Frames), 1/4 Plate, 9’ I-Beam, For Non-HVHZ
AST185Q-K12 18.5” Legs (4 Frames), 1/4 Plate, 12’ I-Beam, For Non-HVHZ
AST185Q-K15 18.5” Legs (5 Frames), 1/4 Plate, 15’ I-Beam, For Non-HVHZ
AST185Q-K18 18.5” Legs (6 Frames), 1/4 Plate, 18’ I-Beam, For Non-HVHZ

24" Stand Assembly

Part No. Description
AST240Q-K3 24” Legs (2 Frames), 1/4 Plate, 3’ I-Beam, For Non-HVHZ
AST240Q-K6 24” Legs (2 Frames), 1/4 Plate, 6’ I-Beam, For Non-HVHZ
AST240Q-K9 24” Legs (3 Frames), 1/4 Plate, 9’ I-Beam, For Non-HVHZ
AST240Q-K12 24” Legs (4 Frames), 1/4 Plate, 12’ I-Beam, For Non-HVHZ
AST240Q-K15 24” Legs (5 Frames), 1/4 Plate, 15’ I-Beam, For Non-HVHZ
AST240Q-K18 24” Legs (6 Frames), 1/4 Plate, 18’ I-Beam, For Non-HVHZ

30" Stand Assembly

Part No. Description
AST300Q-K3 30” Legs (2 Frames), 1/4 Plate, 3’ I-Beam, For Non-HVHZ
AST300Q-K6 30” Legs (2 Frames), 1/4 Plate, 6’ I-Beam, For Non-HVHZ
AST300Q-K9 30” Legs (3 Frames), 1/4 Plate, 9’ I-Beam, For Non-HVHZ
AST300Q-K12 30” Legs (4 Frames), 1/4 Plate, 12’ I-Beam, For Non-HVHZ
AST300Q-K15 30” Legs (5 Frames), 1/4 Plate, 15’ I-Beam, For Non-HVHZ
AST300Q-K18 30” Legs (6 Frames), 1/4 Plate, 18’ I-Beam, For Non-HVHZ

I-Beams

Part No. Description
ASTI-3 Aluminum Stand I-Beam, 3'
ASTI-6 Aluminum Stand I-Beam, 6'
ASTI-9 Aluminum Stand I-Beam, 9'
ASTI-12 Aluminum Stand I-Beam, 12'
ASTI-15 Aluminum Stand I-Beam, 15'
ASTI-18 Aluminum Stand I-Beam, 18'

AST Options

Lead Boot

Lead Boot

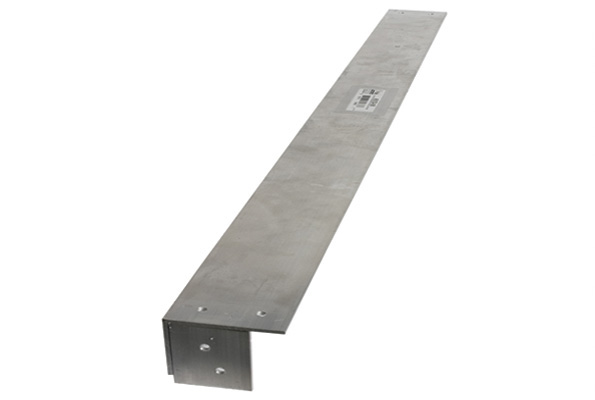

Cross Mounting Angle

Cross Mounting Angle

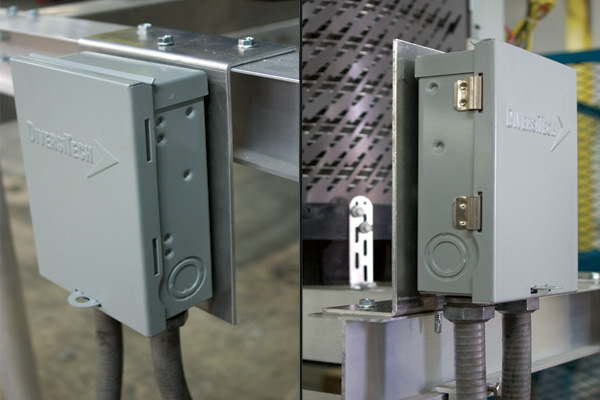

Electrical Mounting Bracket

Electrical Mounting Bracket
